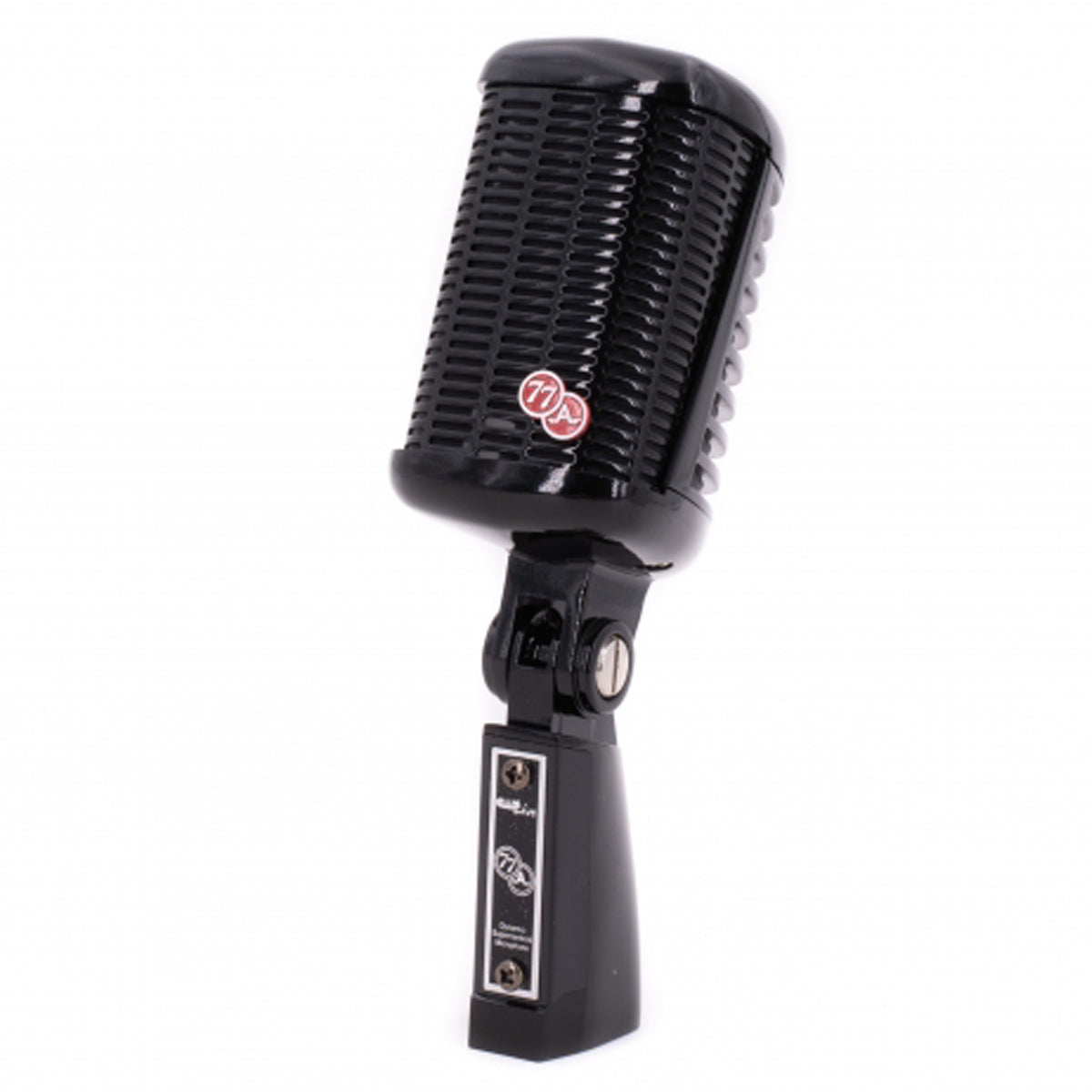

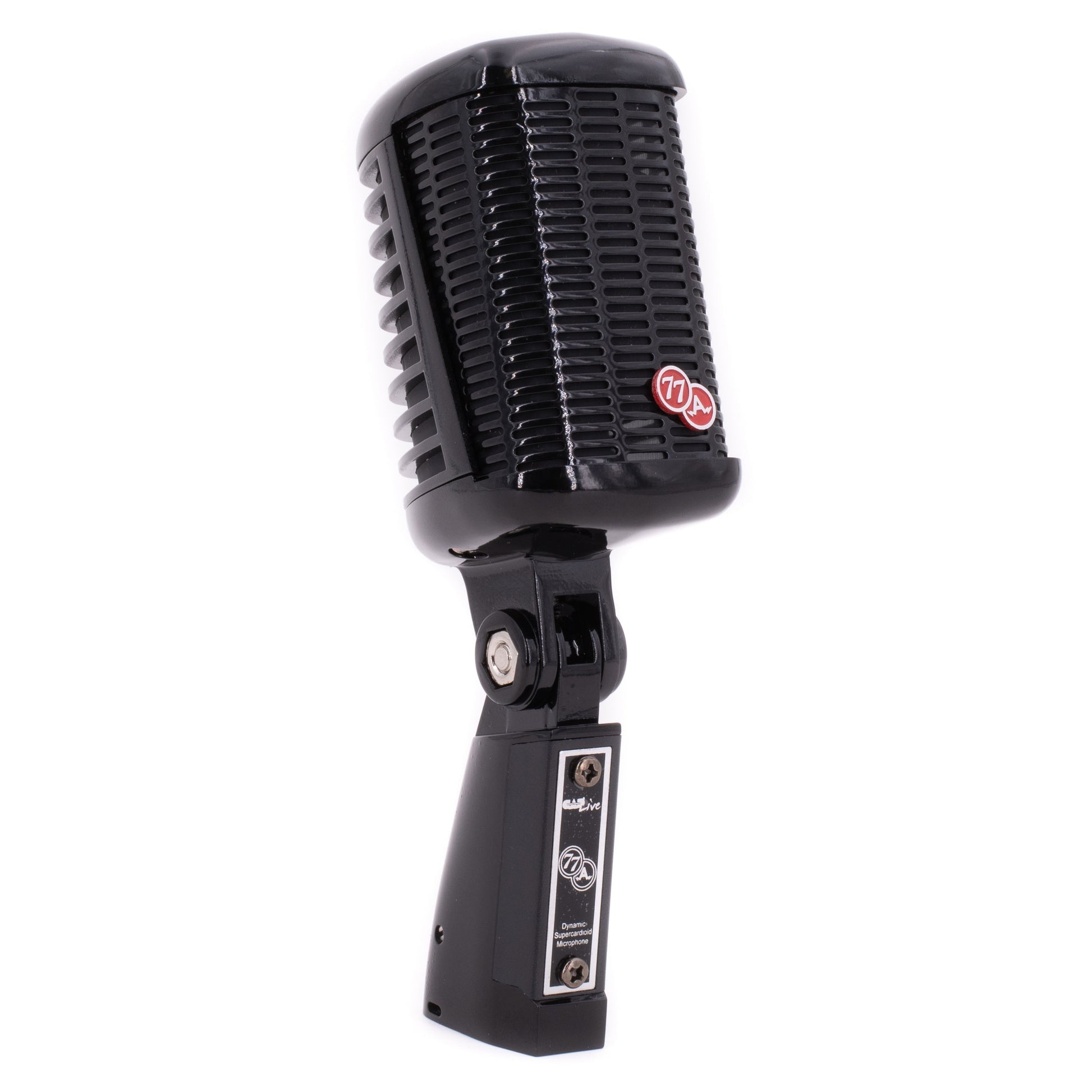

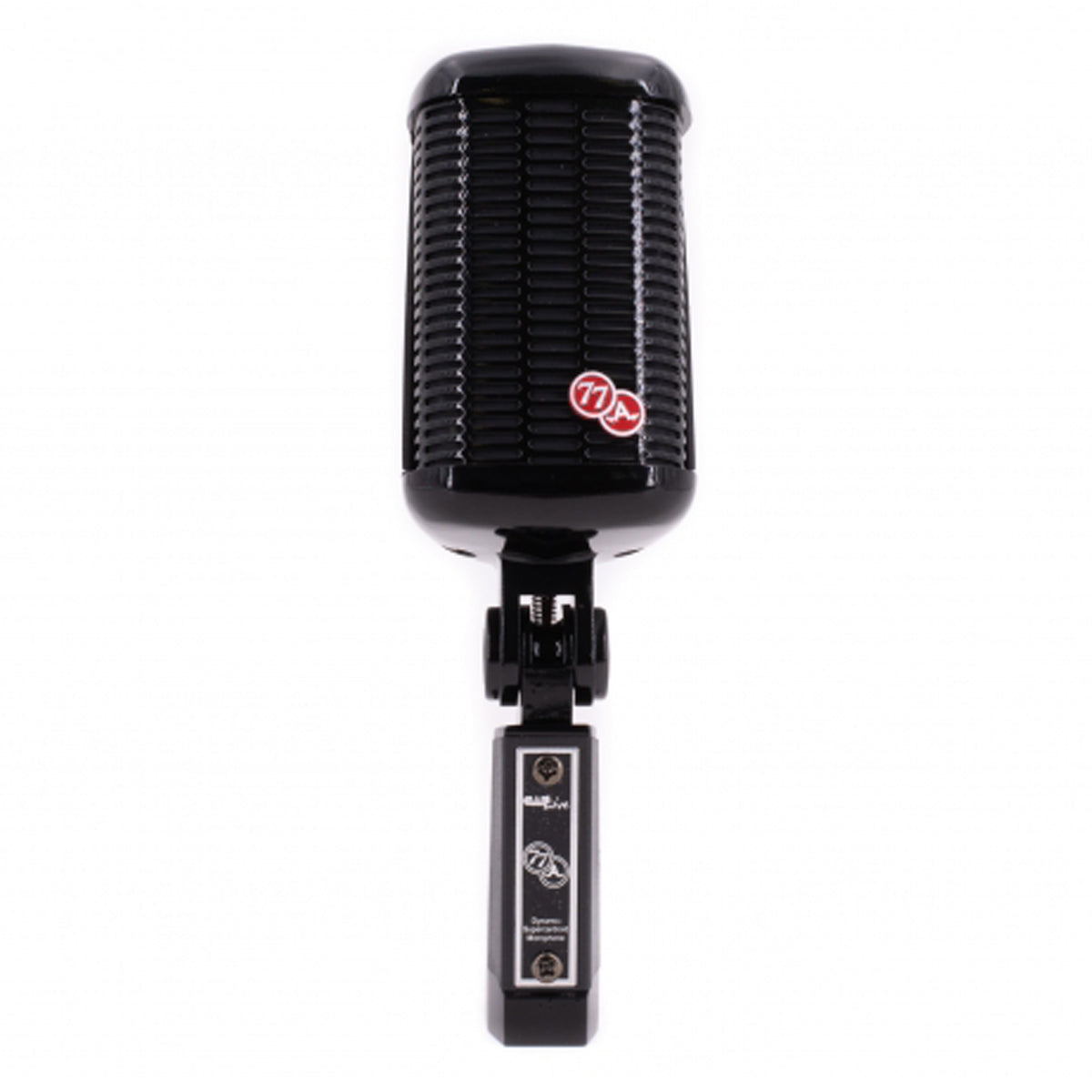

CAD Live A77 Supercardioid Large Diaphragm Dynamic Side Address Microphone ~ Gloss Black
In celebration of the 65th anniversary of the original Astatic A77 created in 1957, CAD Audio has released a special Midnight Black edition of the timeless original.
The A77BK features the famous styling of the original A77 (Patent #185,712) with modernized circuitry for enhanced performance.
The A77BK is a large diaphragm dynamic side address microphone equipped with a modern tribute to the original capsule - updated with a PowerGap™ high gauss magnet and a TrueFlex™ diaphragm. The update brings modern performance and results in a hot and articulate acoustic profile.
• TrueFlex™ diaphragm for articulate response
• PowerGap™ Neodymium magnet for hot signal
• Reimagined retro presentation of a classic
Applications
• Live vocals
• Studio vocals
• Acoustic Guitar
• Percussion Instruments
• Voiceover
• Broadcast /Podcast
Specifications
Operating Principle: Dynamic moving coil motor
Polar Pattern: Supercardioid
Frequency Response: 30Hz-15KHz
Sensitivity: - 48dBV (3.56mV) @ 1 Pa
Impedance: 500 ohms
Max SPL: > 150dB
Dimensions: 24.13cm x 8.26cm x 1 5.88cm (9.5" x 6.25" x 3.25")
Weight: 1.5Ibs (0. 79Kg)
RoHS: Compliant
